Advanced Timer and Light Gates Set

The Lascells Advanced Timer is a millisecond resolution timing device with a clear 4-digit display, designed for accurate and reliable measurements across a wide range of Physics experiments. Engineered to remove the usual setup complexity associated with light gates / dataloggers, it enables quick, straightforward configuration, as a stand-alone system. Four selectable timing modes provide flexibility: Mode 1 uses a single gate, Mode 2 measures between two gates, Mode 3 (‘Triple Time’) displays gate times and total transit time (crucial for the calculation of acceleration, as needed for the study of Newton’s Second Law), and Mode 4 (‘Fence Mode’) uses a supplied picket fence to determine g by free fall. Inputs include 3.5 mm sockets for Lascells Timer Light Gates (S300-855A (two units included)) and Reaction Timer (S300-856A), and 4 mm safety sockets, facilitating compatibility with Speed of Sound (LA50-560A) and g by Freefall (LA30-845).

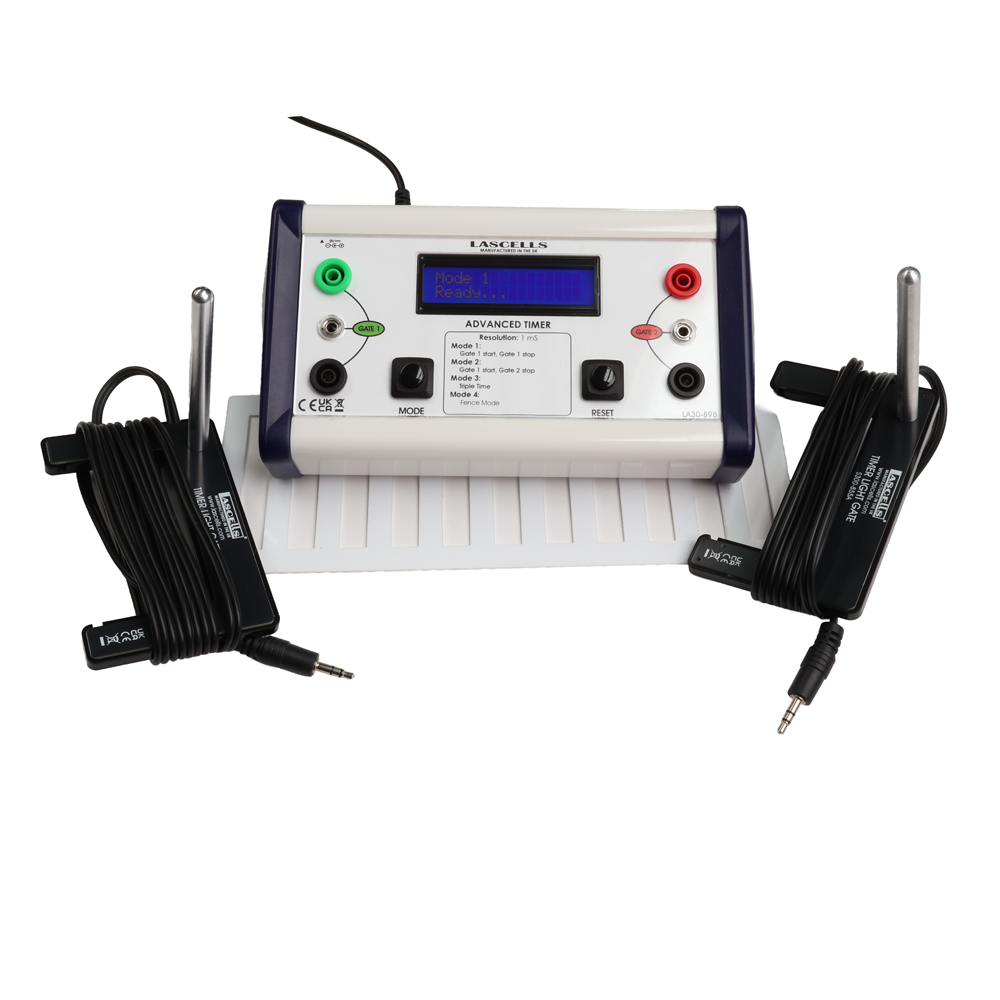

This set includes the timer, picket fence, two Lascells light gates and power supply.

The product image is for illustrative purposes only. Please refer to the product description and technical specifications for accurate product information.
