B.I.L. Coil

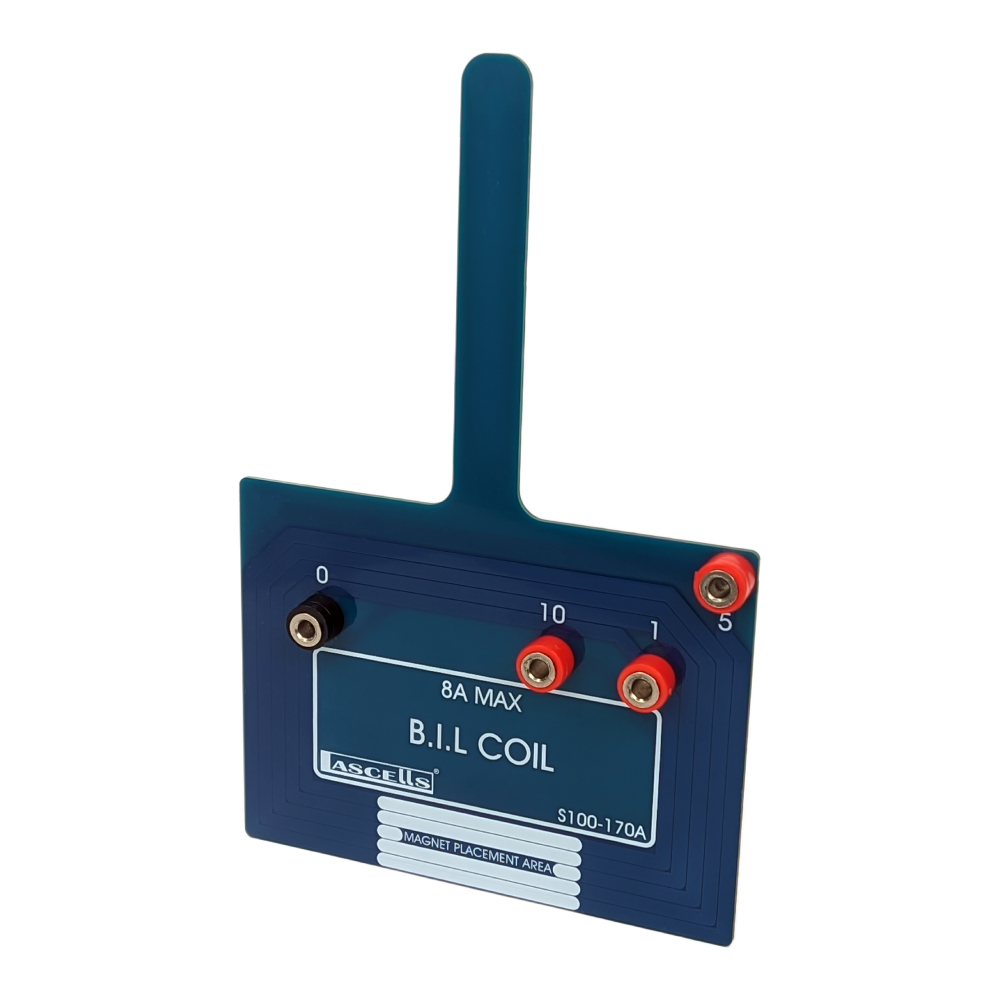

A printed circuit board coil on support handle with 5 and 10 turns rated at 2 A. The lower arm of the coil is 75 mm long (minimum) and 20 mm wide.
In use the coil is supported between the poles of 2 ferrite slab magnets on a yoke or in the adjustable magnet on the top pan of an electronic balance. When a current is passed through the coil the force can be easily measured by the change in reading on the balance and investigations into F=BIL can be carried out.

Purchase from our Stockists:

Purchase Link

The product image is for illustrative purposes only. Please refer to the product description and technical specifications for accurate product information.

SKU: S100-170 Category:

Additional information


L x W x H: 115 x 10 x 180 mm


0.100 kg
