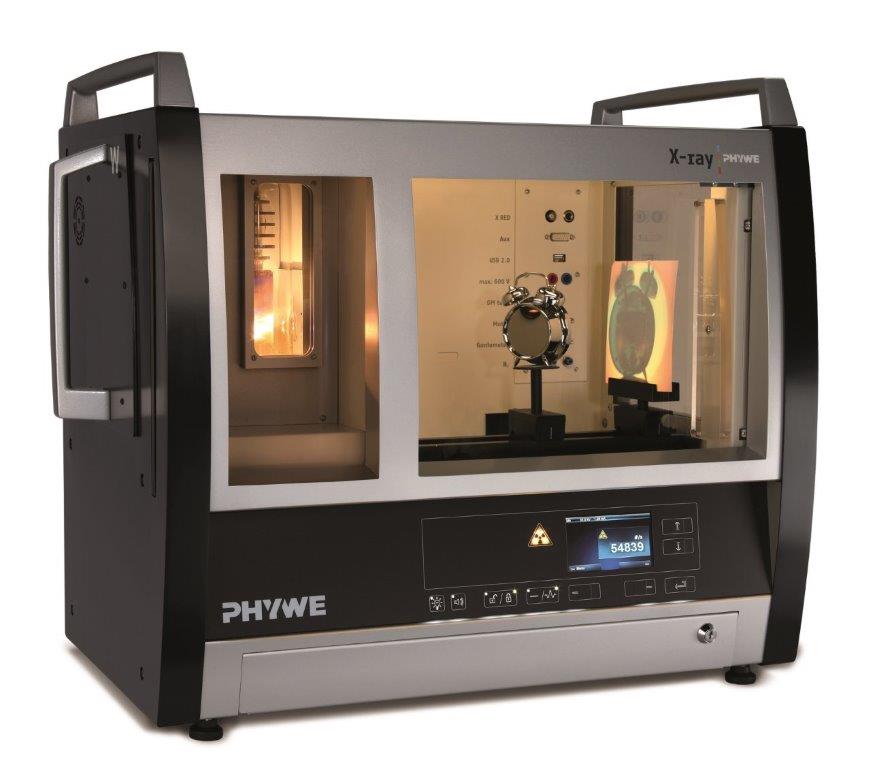

PHYWE X-ray XR 4.0 Expert Unit, 35 kV

The XR 4.0 expert unit is a microprocessor-controlled X-ray system with quick-change X-ray tube technology, specifically designed for use in schools, universities, vocational training, and laboratories. As a fully shielded educational device in accordance with the requirements of the German Federal Office for Radiation Protection, it enables the safe performance of demonstration and laboratory experiments with X-rays. The rapid exchange of X-ray tubes with different anode materials (Fe, Cu, Mo, W) allows a wide range of experiments, which can be controlled and monitored directly on the device or via PC.

Benefits

Educational and fully shielded device in accordance with BfS regulations
Quick-change X-ray tube technology for experiments with various anode materials
Four visible X-ray tubes during operation (Fe, Cu, Mo, W) can be used (optional accessories)
High level of safety due to two independent safety circuits for door monitoring
Microprocessor-controlled system for reproducible settings
Operation directly on the device via TFT color display or PC control via USB 2.0
Lockable accessory drawer for safe storage of important components
True-color LED interior illumination for clear visibility of the experiment chamber

Technical Specification

Microprocessor-controlled base unit
Two independent safety circuits for monitoring the door position
Two independent monitoring circuits for controlling door locking
Connection for a Geiger-Müller tube to determine X-ray intensity
Variable counter tube voltage: 0…600 V
Integrated loudspeaker for acoustic signals
TFT color display, 4.3 inches, 56,536 colors, 480 × 272 pixels, 16 bit
True-color, line-shaped LED interior illumination
Integrated, lockable accessory drawer
PC control via USB 2.0
At least one separately available X-ray tube is required for operation
